Mirror-Lux 500R

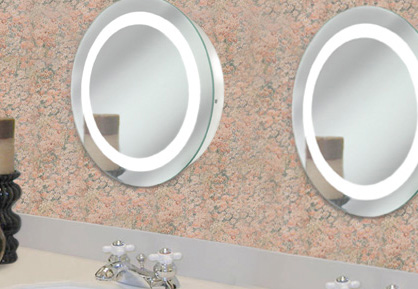

Mirror Lux 500R fixtures from Aamsco Lighting are backlit fixtures that can add elegance to any bathroom that has a Mirror Lux 500R installed in it.

Mirror-Lux 500R


Mirror-Lux 500R

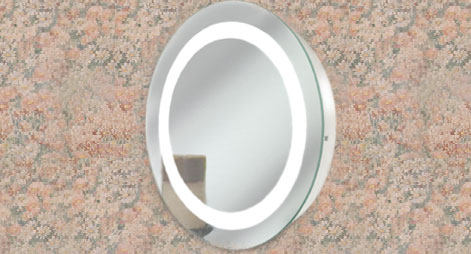

The MIRROR - LUX® 500R is a round mirror, backlit through an inner frosted glass insert.

It is the perfect task light, ideal for powder rooms and bathroom vanities.

This mirror utilizes a T9 circline fluorescent lamp available in various Kelvin temperatures.


Technical and Ordering Data

Standard Specifications

  • Voltage: 120v (220v available, consult factory).
  • Ballast: Magnetic, wound ballast, normal factor, Upgrade option; electronic high power factor; consult factory.
  • Mounting: To be affixed to a mechanically sound surface using a standard 4" J box or smaller. UL Listed for damp locations.
  • ADA: Conforms to the regulations of the Americans with Disabilities Act

*For custom shapes and sizes, consult factory.

Ordering Specifications
Catalog # Dimensions Lamp Type Kelvin Temps
MIRROR - LUX® 500R 500mm Round TLE32 3000K, 4100K, 6000K
