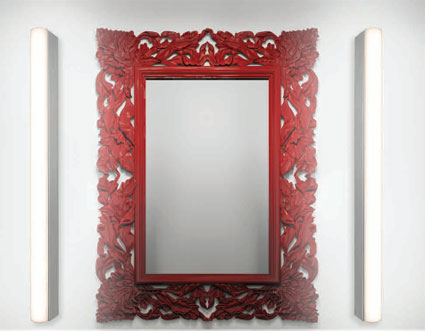

Alinea LED

In addition to Alinea light bulbs, Aamsco Lighting also features Alinea fixtures that complement any room or style.

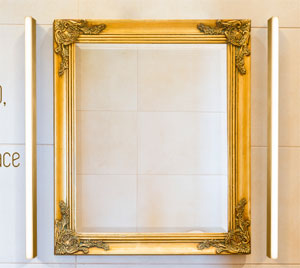

Alinea LED


The beautiful light now available in LED

Alinea LED

Directly Replaces Incandescent Versions Without Modification & is Fully Dimmable!

Long used in the best European custom designs, Alinea is an Art Deco concept brought to perfection by American engineering. The new Alinea LED consumes less electricity than the incandescent it replaces.

Soft and Flattering

Perfect for both kitchens and bathrooms, Alinea LED radiates a soft warm light. By enhancing the warm end of the lighting spectrum, Alinea LED makes furnishings seem cozy and inviting. This applies especially to the flattering of peoples' skin tones.

Unique End-to-End Mounting

For end-to-end mounting, only Alinea LED offers a complete system. Futuristic in design, Alinea LED is perfect for accent lighting in commercial and residential buildings. Prefabricated end knockouts eliminate the need for drilling holes, saving extra contractor charges. End knockouts mean no mess and no jagged edges that can cut or strip wires ... just continuous ribbons of warm light.

Lamps Snap In, Snap Out

For Easy Replacement! Works on 100V-140V, Alinea LED needs no transformer or ballast. Achieves long life, 25,000 hour*estimated average life versus 1000 hour incandescent it replaces. Our unique bulb base design allows the light to be positioned in such a way to direct the light appropriately.


Standard Specifications
Luminaire Cat. No. Description Lamp Catalog No. Description
30CM 30CM Alinea (11.8 inches) LED30 OPALESCENT LED 4W (225 LUMENS)
50CM 50CM Alinea (19.68 inches) LED50 OPALESCENT LED 6W (375 LUMENS)
100CM 100CM Alinea (39.37 inches)
LED100/24K OPALESCENT LED 12-15W (700 LUMENS) 2300-2400K
LED100/35K

OPALESCENT LED 12-15W (700 LUMENS) 3500K

(*240-277V available, consult factory)

The Alinea® LED S14S Linear tube was invented and designed by AAMSCO Lighting Inc. [Delaware] and is patented in both the European Union and in the United States of America. ALINEA® is a registered trademark of AAMSCO Lighting Inc. [Delaware], and the Alinea® LED tube is covered under U.S. Patent # D 672,083 S and E.U. Patent # 001973132-0001. We attach singular importance to our aforesaid intellectual property rights and action will be taken against any party who violates these rights.

Technical Data

End Knockouts

Continuous run end-to-end mounting is to be accomplished through the use of factory prefabricated end knockouts to prevent stripped wires.

Mounting

Utilizes a junction box. Not for ceiling mounting.

Keyhole Mounting Slots

The fixture assembly has keyhole slots for mounting on walls.

Luminaire

UL listed (for damp locations).

Channel Design

Fixture design allows the bulb to fit into a channel spanning its entire length.
