Quartz Infrared Heat Lamps

Quartz Infrared Heat Lamps
Quartz Infrared Heat Lamps


Quartz Infrared Lamps

Lamps can be used in many Industrial, Zone Heating and Commercial Processing Applications including PET moulding.

  • Food Warming
  • Zone Heating
  • Paint Drying
  • Plastic Vacuum Forming
  • Cooking
  • Curing
  • Adhesive Drying
  • Semiconductors
  • Printing

Use the links below to navigate through the content

Quartz Infrared Lamps


SK11 base SK15 base Helen Gold Lamps R7S base w/leads R7S base Ruby Jacketed U base V base X base

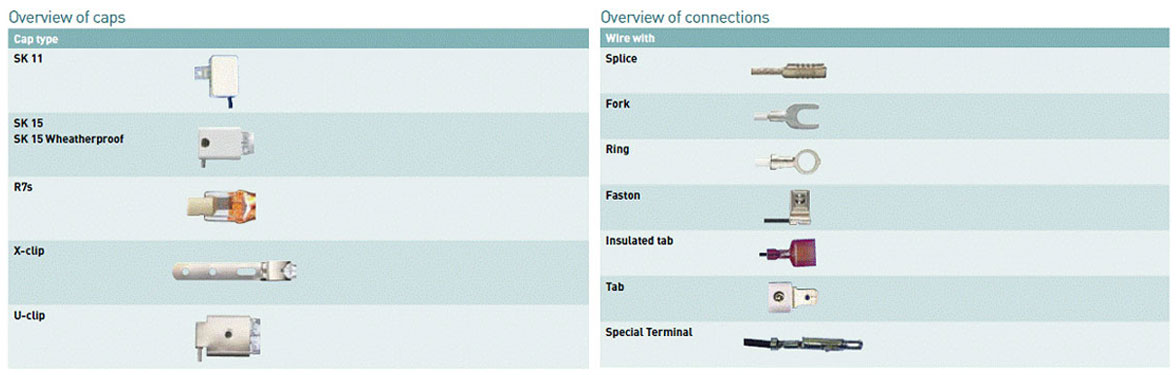

Caps and Connections
Type W V Total lgth (mm) Heating lgth (mm +/- 5) Base Finish Diam (mm) Color temp K Clear lamp Burning pos. Life hrs Cables (mm) Connection
17013Z/98 200 60 97.0 40.0 SK15 REFLECT 10.5 1800 Horiz. 5000 250/250 splice
14181Z 300 120 433.0 380.0 SK15 CLEAR 11.0 1850 Any 5000 600/100 insulated splice
13908R 300 230 117.5 60.0 R7S CLEAR 11.0 2500 Horiz. 1000 na na
13908Z 300 230 122.0 60.0 SK15 CLEAR 11.0 2500 Horiz. 1000 140/140 splice
14169Z 350 235 628.0 550.0 SK15 TRANSL 11.0 1750 Any 5000 1200/230 insulated splice
13296C 400 110 495.4 443.0 SK11 CLEAR 11.0 1800 Horiz. 5000 183/513 special
13296C2 400 110 495.4 443.0 SK11 CLEAR 11.0 1800 Horiz. 5000 120/500 special
13939F-V 400 110 SK11 CLEAR 11.0 2150 Horiz. 5000 105/105 faston
13939F-V 400 230 SK11 CLEAR 10.0 2250 Horiz. 5000 105/105 faston
13169X 500 120 242.0 142.0 X CLEAR 11.0 2450 Horiz. 5000 na na
13169X/98 500 120 242.0 142.0 X REFLECT 11.0 2450 Horiz. 5000 na na
500T3 500 120 224.0 127.0 U TRANSL 11.0 2500 Horiz. 5000 146/146 not insulated splice
13169CF/850 500 235 230.5 160.0 ClicFit CLEAR 19.0 2400 Horiz. 5000 na na
13169R 500 235 220.6 165.0 R7S CLEAR 11.0 2450 Horiz. 5000 na na
13169Z/850 500 235 225.0 160.0 SK15 CLEAR 19.0 2400 Horiz. 5000 230/230 splice
13169Z/98 500 235 227.0 159.0 SK15 REFLECT 11.0 2300 Horiz. 5000 200/200 fork
14142Z 500 235 787.5 700.0 SK15 TRANSL 11.0 1800 Any 5000 1200/230 insulated splice
14157Z 500 235 628.5 550.0 SK15 TRANSL 11.0 1800 Any 5000 230/1200 insulated white wire splice
15011Z 500 235 227.5 162.0 SK15 HeLeN 11.0 na Horiz. 5000 300/300 insulated fork
15084Z 500 235 226.0 165.0 SK15 HeLeN 11.0 na Horiz. 5000 150/500 insulated white wire splice
13790R 650 220 550.4 495.0 R7S CLEAR 11.0 2200 Horiz. 5000 na na
17018Z 650 235 236.0 164.0 SK15 CLEAR 11.5 1700 Horiz. 5000 140/140 splice
13842Z 700 240 216.0 150.0 SK15 CLEAR 11.0 2600 Horiz. 5000 140/140 insulated splice
14117Z 750 230 787.0 700.0 SK15 CLEAR 11.0 2000 Any 5000 1200/230 insulated splice
14124Z 750 230 787.0 700.0 SK15 TRANSL 11.0 1750 Any 5000 1200/230 insulated splice
14155Z 750 230 787.0 700.0 SK15 CLEAR 11.0 1750 Any 5000 1200/230 insulated splice
13207/998 1000 110 204.0 126.0 R7S W/LEAD REFLECT 11.0 2400 Any 5000 200/200 fork
15049Z 1000 120 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 300/300 double insulated faston
15078Z 1000 120 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 500/500 insulated white wire splice
13195U 1000 235 346.0 270.0 U CLEAR 11.0 2500 Horiz. 5000 202/202 not insulated splice
13195X 1000 235 370.0 272.0 X CLEAR 11.0 2500 Horiz. 5000 na na
13195X/98 1000 235 370.0 272.0 X REFLECT 11.0 2500 Horiz. 5000 na na
13195Z/98 1000 235 355.0 272.0 SK15 REFLECT 11.0 2500 Horiz. 5000 200/200 insulated fork
13713X 1000 235 370.0 272.0 X CLEAR 11.0 2450 Any 5000 na na
13713X/98 1000 235 370.0 272.0 X REFLECT 11.0 2450 Any 5000 na na
13713Z/98 1000 235 355.0 272.0 SK15 REFLECT 11.0 2500 Any 5000 200/200 insulated fork
13713Z/98L 1000 235 355.0 272.0 SK15 REFLECT 11.0 2500 Any 5000 300/300 insulated fork
15007Z 1000 235 355.0 272.0 SK15 HeLeN 11.0 na Horiz. 5000 300/300 double insulated faston
15008X 1000 235 370.0 272.0 X HeLeN 11.0 na Any 5000 na na
15009Z 1000 235 355.0 272.0 SK15 HeLeN 11.0 na Any 5000 900/900 insulated faston
15058Z 1000 235 355.0 280.0 SK15/21 HeLeN 11.0 na Any 5000 400/400 double insulated white wire splice
15066Z 1000 235 355.0 272.0 SK15 HeLeN 11.0 na Horiz. 5000 300/500 double insulated whire wire splice
15070Z 1000 235 355.0 272.0 SK15 HeLeN 11.0 na Horiz. 5000 150/500 insulated white wire
15072C 1000 235 336.0 280.0 R7s+LEAD HeLeN 11.0 na Horiz. 5000 155/155 double insulated splice
15079Z 1000 235 355.0 272.0 SK15 HeLeN 11.0 na Any 5000 500/500 insulated white wire splice
15081Z 1000 235 355.0 272.0 SK15 HeLeN 11.0 na Horiz. 5000 200/600 double insulated faston
15090Z 1000 235 355.0 272.0 SK15 HeLeN 11.0 na Any 5000 600/600 double insulated/insulated white wire splice
1000T3 1000 240 351.0 254.0 U TRANSL 11.0 2500 Horiz. 5000 146/146 splice
1000T3/CL 1000 240 306.0 254.0 U CLEAR 11.0 2500 Horiz. 5000 146/146 not insulated splice
14187Z/98 1000 400 355.0 274.0 SK15s REFLECT 11.0 2550 Horiz. 5000 200/200 insulated white wire fork
15026Z 1100 230 532.0 446.0 SK15 HeLeN 11.0 na Any 5000 85/85 insulated tab
15040R 1,100 230 254.1 185.0 R7S HeLeN 11.0 na P4 2,000 na na
15025R 1200 120 254.1 185.0 R7S HeLeN 11.0 na Horiz. 2000 na na
15025R 1200 120 254.1 185.0 R7S HeLeN 11.0 na Horiz. 2000 na na
15089R 1200 120 254.1 185.0 R7S Gold 11.0 na Horiz. 2000 na na
13561U 1200 144 222.5 150.0 U REFLECT 11.0 2400 Horiz. 5000 150/150 fork
13561U/98 1200 144 222.5 150.0 U REFLECT 11.0 2400 Horiz. 5000 150/150 fork
13561Z/98 1200 144 228.0 150.0 SK15 REFLECT 11.0 2500 Horiz. 5000 150/150 fork
14134Z/98 1200 235 224.0 155.0 SK15 REFLECT 11.0 2600 Horiz. 5000 150/150 fork
13393Z 1300 235 787.0 700.0 SK15 CLEAR 11.0 2000 Any 5000 200/200 insulated fork
15094Z 1300 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 600/600 double insulated /insulated white wire splice
15028R 1300 240 254.1 185.0 R7S HeLeN 11.0 na Horiz. 2000 na na
15085R 1300 240 254.1 185.0 R7S Gold 11.0 na Horiz. 2000 na na
15015Z 1500 120 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 300/300 insulated fork
15062Z 1,500 120 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 400/400 double insulated/insulated white wire splice
15093Z 1500 120 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 600/600 double insulated / insulated white wire splice
15004CF 1500 235 359.0 280.0 ClicFit HeLeN 11.0 na Horiz. 5000 na na
15004Z 1500 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 300/300 double insulated faston
15034Z 1500 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 300/300 double insulated faston
15042Z 1500 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 150/500 insulated white wire splice
15050Z 1500 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 150/500 insulated white wire splice splice
15053C 1500 235 352.0 280.0 R7S+LEAD HeLeN 11.0 na Horiz. 5000 15/15 not insulated na
15059Z 1500 235 355.0 280.0 SK15/21 HeLeN 11.0 na Any 5000 400/400 double insulated/insulated white wire splice
15067Z 1500 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 300/500 double insulated splice white wire splice
15071C 1500 235 336.0 280.0 R7S+LEAD HeLeN 11.0 na Horiz. 5000 155/155 double insulated splice
15076C 1500 235 352.0 280.0 R7s+LEAD HeLeN 11.0 Any 5000 162/512 single insulation semi-strip
15080Z 1500 235 355.0 272.0 SK15 HeLeN 11.0 na Any 5000 500/500 insulated white wire splice
15082Z 1500 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 200/600 double insulated faston
15091Z 1500 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 600/600 double insulated/insulated white wire splice
15010Z 1500 240 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 300/300 double insulated fork
15030R 1500 240 351.1 280.0 R7S HeLeN 11.0 na Horiz. 5000 na na
13568U 1600 144 222.5 155.0 U REFLECT 11.0 2500 Horiz. 5000 150/150 fork
13568U/98 1600 144 222.5 155.0 U REFLECT 11.0 2500 Horiz. 5000 150/150 fork
13568U/98 1600 144 222.5 155.0 U REFLECT 11.0 2500 Horiz. 5000 150/150 fork
14135Z/98 1600 235 228.0 155.0 SK15 REFLECT 11.0 2600 Horiz. 5000 150/150 fork
1600T3/7 1600 240 498.5 406.0 R7S TRANSL 11.0 2550 Horiz. 5000 na na
1600T3/CL 1600 240 503.0 406.0 U CLEAR 11.0 2500 Horiz. 5000 146/146 splice
1600T3 1600 277 503.0 404.0 U FROSTED 11.0 2500 Horiz. 5000 146/146 not insulated splice
13252/99 1600 600 731.5 418.0 R7S+LEAD CLEAR 11.0 2700 Horiz. 5000 190/190 splice splice
13214Z/98 2000 230 656.0 500.0 SK15 REFLECT 11.0 2400 Horiz. 5000 500/500 splice insulated splice
13168V 2000 235 350.0 280.0 V CLEAR 2450 Any 5000 138/117 insulated ring
13168X 2000 235 370.0 280.0 X CLEAR 11.0 2500 Any 5000 na na
13168X/98 2000 235 370.0 280.0 X REFLECT 11.0 2500 Any 5000 na na
13168Z 2000 235 355.0 280.0 SK15 CLEAR 11.0 2500 Any 5000 200/200 insulated fork
13168Z/98 2000 235 355.0 280.0 SK15 REFLECT 11.0 2500 Any 5000 200/200 insulated fork
13213Z/98F 2000 235 355.0 280.0 SK15s REFLECT 11.0 2500 Horiz. 5000 200/200 insulated white wire fork
14103Z/98 2000 235 355.0 280.0 SK15 REFLECT 11.0 2500 Horiz. 5000 230/230 insulated splice
14132Z/98 2000 235 787.5 700.0 SK15 REFLECT 11.0 2 300 / 2 400 Horiz. 5000 500/500 splice
14136Z/98 2000 235 355.0 280.0 SK15 REFLECT 11.0 2700 Horiz. 5000 200/200 insulated fork
14189V 2000 235 350.0 280.0 V CLEAR 11.0 2450 Any 5000 85/85 white wire insulated splice
14193Z/98 2000 235 360.0 285.0 SK15 REFLECT 11.0 2400 Horiz. 5000 160/160 double insulated ring
15005Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 300/300 double insulated faston
15021Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 300/300 double insulated faston
15095Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 300/900 double insulated faston
15043Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 150/500 insulated white wire splice
15045Z 2000 235 532.0 446.0 SK15 HeLeN 11.0 na Any 5000 85/85 double insulated tab
15051Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 150/500 insulated white wire splice
15057Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 400/400 double insulated splice white wire splice
15060Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 140/140 double insulated white wire splice
15068Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 300/500 double insulated/insulated white wire splice
15083Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Horiz. 5000 200/600 double insulated faston
15092Z 2000 235 355.0 280.0 SK15 HeLeN 11.0 na Any 5000 600/600 double insulated / insulated white wire splice
2MT3/1CL/HT/UB0 2000 240 305.0 254.0 U CLEAR 11.0 2500 Any 5000 146/146 not insulated splice
13245X 2000 400 512.0 416.0 X CLEAR 11.0 2450 Horiz. 5000 na na
13245X/98 2000 400 512.0 416.0 X REFLECT 11.0 2450 Horiz. 5000 na na
13765X 2000 400 512.0 410.0 X CLEAR 11.0 2450 Any 5000 na na
13765X/98 2000 400 508.0 410.0 X REFLECT 11.0 2450 Any 5000 na na
14141X 2000 400 370.0 282.0 X CLEAR 11.0 2700 Any 5000 na na
14173Z/98 2000 400 355.0 274.0 SK15s REFLECT 11.0 2700 Horiz. 5000 300/300 splice
14188Z/98 2000 400 355.0 274.0 SK15s REFLECT 11.0 2700 Horiz. 5000 200/200 insulated white wire fork
14207X/98 2000 400 843.0 274.0 X REFLECT 11.0 2600 Any 5000 na na
14137Z/98 2500 235 355.0 280.0 SK15 REFLECT 11.0 2700 Horiz. 5000 200/200 insulated fork
14182V 2500 235 350.0 284.0 V CLEAR 11.0 2450 Any 5000 117/138 insulated ring
14190V 2500 235 350.0 284.0 V CLEAR 11.0 2450 Any 5000 85/85 White wire insulated splice
14140C/98 2500 400 600.0 506.0 R7S+LEAD REFLECT 11.0 2550 Horiz. 5000 300/300 splice
14143Z/98 2500 400 355.0 280.0 SK15s REFLECT 11.0 2700 Horiz. 5000 200/200 insulated fork
14120R 2500 480 726.0 638.0 R7S CLEAR 11.0 2550 Horiz. 5000 na na
2500T3 2500 480 731.0 638.0 U TRANSL 11.0 2550 Horiz. 5000 146/146 splice
2500T3/7 2500 480 726.0 638.0 R7S TRANSL 11.0 2550 Horiz. 5000 na na
2500T3/CL 2500 480 731.0 638.0 U CLEAR 11.0 2550 Horiz. 5000 146/146 splice
14168C 2500 575 730.0 636.0 R7S+LEAD CLEAR 11.0 146/146 splice
13848/99 2500 600 1059.0 636.0 R7S+LEAD CLEAR 11.0 2500 Horiz. 5000 146/146 splice
14107Z 3000 230 787.0 700.0 SK15 CLEAR 11.0 2400 Horiz. 5000 500/500 splice
14107Z/98 3000 230 787.0 696.0 SK15 REFLECT 11.0 2300 Horiz. 5000 500/500 insulated splice
13565V 3000 235 350.0 277.0 V CLEAR 13.5 2400 Any 5000 138/117 ring
13565X 3000 235 370.0 277.0 X CLEAR 13.0 2500 Any 5000 na na
14121Z/98 3000 235 355.0 280.0 SK15 REFLECT 11.0 2650 Horiz. 5000 230/230 splice
14194Z/98 3000 235 360.0 285.0 SK15 REFLECT 11.0 2650 Horiz. 5000 160/160 double insulated ring
15012U 3000 235 503.0 423.0 U HeLeN 11.0 na Any 5000 146/146 splice
13215X 3000 400 802.0 700.0 X CLEAR 11.0 2450 Horiz. 5000 na na
13230X 3000 400 802.0 700.0 X CLEAR 11.0 2450 Any 5000 na na
13230X/98 3000 400 802.0 700.0 X REFLECT 11.0 2450 Any 5000 na na
14144Z/98 3000 400 355.0 280.0 SK15s REFLECT 11.0 2650 Horiz. 5000 200/200 insulated fork
14175Z 3000 400 355.0 280.0 SK15s CLEAR 11.0 2650 Horiz. 5000 230/230 insulated splice
14177C/98 3000 400 784.0 700.0 R7S+LEAD REFLECT 11.0 2450 Horiz. 5000 300/300 insulated splice
14205C 3650 480 1061.0 962.0 R7S+LEAD CLEAR 11.0 2500 Horiz. 5000 146/146 splice
14206C 3800 570 1058.0 963.0 R7S+LEAD CLEAR 11.0 2500 Any 5000 146/146 splice
3800T3 3800 575 1062.0 965.0 U TRANSL 11.0 2500 Horiz. 5000 146/146 splice
3800T3/CL/UB 3800 575 1062.0 967.0 U CLEAR 11.0 2500 Any 5000 146/146 not insulated splice
Back to Top

Incandescent Infrared


PAR38 Clear PAR38 RED R125 Clear R125 Frost R125 Red
TYPE WATTS VOLTS BASE MOL (MM) DIAM (MM) FINISH Burning Pos. Life hrs.
IR150CH R125 150 230-250 E27 179 125 Clear Universal 5000
IR150CH R125 150 230-250 E27 179 125 Red Universal 5000
IR175CH R125 175 230-250 E27 179 125 Clear Universal 5000
IR250CH R125 250 230-250 E27 179 125 Red Universal 5000
IR250H R125 250 230-250 E27 179 125 Clear Universal 5000
IR300CH R125 300 230-250 E27 179 125 Clear Universal 5000
IR375CH R125 375 230-250 E27 183 125 Clear Universal 5000
IR375FR R125 375 230-250 E27 183 125 Frosted Universal 5000
IR100R PAR38 100 230 E27 136 121 Red Horizontal H45 5000
IR100R PAR38 100 240 E27 136 121 Red Horizontal H45 5000
IR100C PAR38 100 230 E27 136 121 Clear Universal 5000
IR100C PAR38 100 240 E27 136 121 Clear Universal 5000
IR175C PAR38 175 230 E27 136 121 Clear Universal 5000
IR175C PAR38 175 240 E27 136 121 Clear Universal 5000
IR175R PAR38 175 230 E27 136 121 Red Horizontal H45 5000
IR175R PAR38 175 240 E27 136 121 Red Horizontal H45 5000
Back to Top
