Model 336 Luminaires
Model 336 hanging light fixtures from Aamsco Lighting have been specially designed to provide you with exceptionally clear, beautiful light.
Timeless Elegance

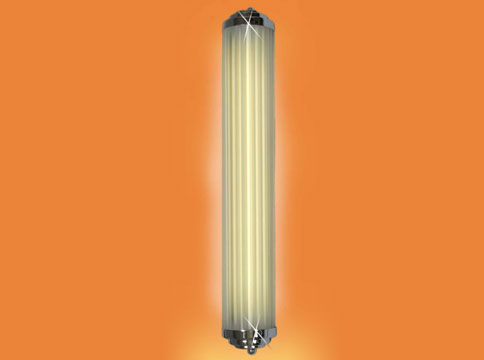

The 336 is a classic art deco design with elegance in visual harmony with today’s state of the art sources. This incandescent model can be mounted vertically or horizontally.With clear and frosted glass rods, that can be used in combination to create a unique luminaire. Contact us today to order these hanging light fixtures.
TECHNICAL AND ORDERING DATA
STANDARD SPECIFICATIONS

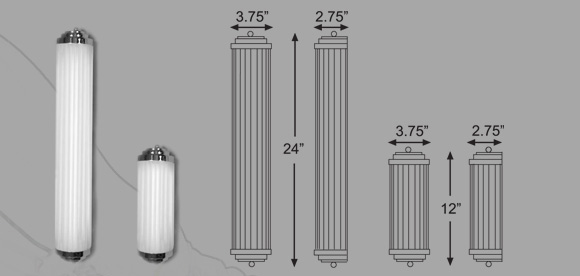

12″ version available as incandescent only.
Electronic Ballast
High power factor used in fluorescent version.
220v export versions are available.
Mounting
Vertical or Horizontal: Luminaires should be affixed to a mechanically sound surface using the mounting holes on each end. Surface mounting width is 3.5 inches. Electrical connection should be made to a box 3 inches or smaller.
| Ordering Specifications | ||
|---|---|---|
| Luminaire Catalog No. | Description | Lamp Type |
| 33612 | 12″ Incandescent | 1 x 60T10 |
| 3624-I | 24″ Incandescent | 2 x 60T10 |
| 33624-F | 24″ Fluorescent | 1 x F13T5 |
