Mirror-Lux RST LED Mirror

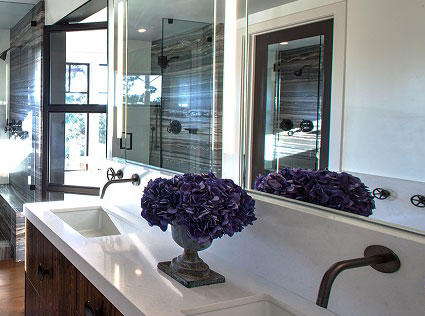

Mirror-Lux® RST LED from Aamsco Lighting is backlit bathroom mirror insert that can be placed alongside existing mirrors to provide elegance into your bathroom. Can be mounted horizontally or vertically.

Fully dimmable, these inserts can add additional lighted space between existing mirrors. Available with >90 CRI and various LED color temperatures. Two standard sizes are available. Consult factory for custom sizes for the backlit bathroom mirror.
Mirror-Lux® RST LED


  • Voltage: 120V
  • Driver: Constant Current
  • Dimming: Triac Phase Control
  • Knockout: Cable is inserted through ½”KOs. No electrical box is required. Knockout is positioned 3” from bottom & 3” from left side (box facing front).
  • Mounting: Four (4) holes provided for mounting to a mechanically sound surface 1 ½” from top & bottom; 1” from the sides.
  • ETL Listed for recessed damp locations

*Custom sizes and other color temps available; consult factory.

Ordering Specifications
Catelog # Lamp Type Wattage Lumens Color Temperature CRI
RST-21LED/30K LED MODULES 25W 2752 3000K >80
RST-28LED/30K LED MODULES 33W 3670 3000K >80
